■ 产品特点
本产品外壳采用铝合金外壳，外形美观大方，易于安装可组合使用。广泛应用于电源、变频器、伺服系统等高要求的电气回路中。
This product shell with aluminum alloy shell, elegant appearance, easy to install can be used in combination. Widely used in power supply, inverter, servo system and other high requirements of the electrical circuit.
◇ 功率:60W~2000W
Range of rated power: 60W~2000W
◇ 电压范围:0.5KV-2KV
Range of voltage: 0.5KV-2KV
◇ 阻值范围:1R-10KR
Range of resistance: 1R-10KR
◇ 耐压:AC2.5KV-4KV/1min 50Hz
Dielectric strength: AC2.5KV-4KV/1min 50Hz
◇ IP等级:IP44
Protection level: IP44
◇ 振动:1.5g
Vibration: 1.5g
◇ 额定温升:375℃
Rated temperature rise:375℃
◇ 温漂:40~400ppm/℃
Temperature drift: 40~400ppm/℃
◇ 载流体材料:0Cr25AL5//Ni80Cr20
Carrier material: 0Cr25AL5//Ni80Cr20
◇ 优势:较恶劣工作环境
Advantages:Can work in harsh environments
Range of rated power |
11~200KW |
Range of voltage |
0.5KV-10KV |
Range of resistance |
0.5R-100R |
Dielectric strength |
2.5KV-3KV/1min 50Hz |
Protection level |
IP20~IP23 |
Vibration |
0.5g |
Rated temperature rise |
375℃ |
Temperature drift |
80~400ppm/℃ |
Carrier material |
0Cr25AL5//Ni80Cr20 |
Temperature Protection |
Built-in 85 ℃ temperature control switch |
Advantages |
high power, high voltage |

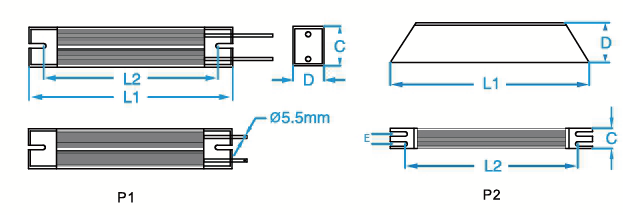

■ 产品尺寸图
产品型号 |
规格 |
图号 |
尺寸:mm size |
出线方式 |
|||||
L1 |
L2 |
C |
D |
E |
端子 |
引线 |
|||
NS-RXLG |
50W |
P1 |
115 |
98 |
40 |
20 |
- |
500mm |
|
80W |
140 |
123 |
40 |
20 |
- |
500mm |
|||
100W |
165 |
148 |
40 |
20 |
- |
500mm |
|||
120W |
190 |
173 |
40 |
20 |
- |
500mm |
|||
150W |
215 |
197 |
40 |
20 |
- |
500mm |
|||
200W |
165 |
147 |
60 |
30 |
- |
500mm |
|||
300W |
215 |
197 |
60 |
30 |
- |
500mm |
|||
400W |
265 |
247 |
60 |
30 |
- |
500mm |
|||
500W |
335 |
317 |
60 |
30 |
- |
500mm |
|||
600W |
335 |
317 |
60 |
30 |
- |
500mm |
|||
800W |
P2 |
400 |
382 |
61 |
59 |
30 |
M6 |
||
1000W |
400 |
384 |
50 |
107 |
30 |
M6 |
|||
1200W |
450 |
434 |
50 |
107 |
30 |
M6 |
|||
1500W |
485 |
470 |
50 |
107 |
30 |
M6 |
|||
2000W |
550 |
532 |
50 |
107 |
30 |
M6 |
|||
2500W |
550 |
532 |
50 |
107 |
30 |
M6 |
|||
3000W |
600 |
585 |
50 |
107 |
30 |
M6 |
|||

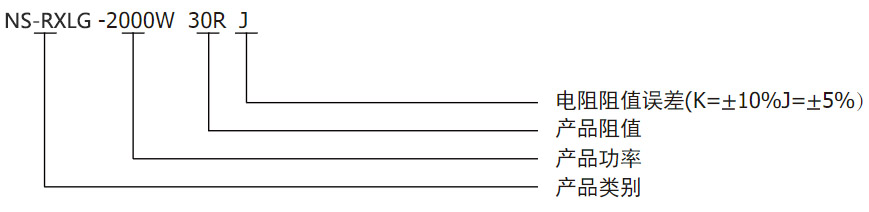

■ 产品识别码
