■ 产品识别码
■ 产品特点

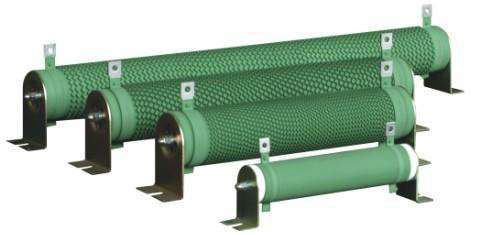

本产品用陶瓷管作为骨架，合金电阻丝均匀的绕制在骨架上，表面涂有耐高温的绝缘涂料，安装方便，具有良好散热能力，可用于变频器制动，伺服系统，电源等电气回路中。
The ceramic tube is used as the skeleton, the alloy resistance wire is evenly wound on the skeleton, the surface is coated with heat-resistant insulating paint, and the installation is convenient and has good heat dissipation capability. The utility model can be used for the electric circuit of the brake, servo system, power supply of the frequency converter, etc. in.
◇ 功率范围:50W-3000W
Range of rated power: 50W-3000W
◇ 电压范围:0.5KV—10KV
Range of voltage: 0.5KV—10KV
◇ 阻值范围:1R-1KR
Range of resistance: 1R-1KR
◇ 耐压:AC2.5KV-20KV/1min 50Hz
Dielectric strength: AC2.5KV-20KV/1min 50Hz
◇ IP等级:IP00
Protection level: IP00
◇ 振动:1g
Vibration: 1g
◇ 额定温升:375℃
Rated temperature rise:375℃
◇ 温漂:80~400ppm/℃
Temperature drift: 80~400ppm/℃
◇ 载流体材料:0Cr25AL5//Ni80Cr20
Carrier material: 0Cr25AL5//Ni80Cr20
Range of rated power |
50W-3000W |
Range of voltage |
0.5KV—10KV |
Range of resistance |
1R-1KR |
Dielectric strength |
AC2.5KV-20KV/1min 50Hz |
Protection level |
IP00 |
Vibration |
1g |
Rated temperature rise |
375℃ |
Temperature drift |
80~400ppm/℃ |
Carrier material |
0Cr25AL5//Ni80Cr20 |
■ 产品尺寸图
额定功率 (W) |
尺寸 (Unit:mm) |
||||||||||
W |
W1 |
W2 |
D |
B |
B1 |
H |
H1 |
N |
φd |
O |
|
50 |
102 |
124 |
146 |
28 |
6.5 |
28 |
28 |
62 |
10 |
4.5 |
1.2 |
60 |
102 |
124 |
146 |
28 |
6.5 |
28 |
28 |
62 |
10 |
4.5 |
1.2 |
80 |
152 |
174 |
176 |
28 |
6.5 |
28 |
28 |
62 |
10 |
4.5 |
1.2 |
100 |
182 |
204 |
226 |
28 |
6.5 |
28 |
28 |
62 |
10 |
4.5 |
1.2 |
120 |
182 |
204 |
226 |
28 |
6.5 |
28 |
28 |
62 |
10 |
4.5 |
1.2 |
150 |
195 |
217 |
272 |
40 |
8 |
40 |
41 |
62 |
12 |
5.5 |
2.0 |
200 |
195 |
217 |
272 |
40 |
8 |
40 |
41 |
62 |
12 |
5.5 |
2.0 |
300 |
282 |
304 |
326 |
40 |
8 |
38 |
41 |
85 |
12 |
5.5 |
2.0 |
400 |
282 |
304 |
326 |
40 |
8 |
38 |
41 |
85 |
12 |
5.5 |
2.0 |
500 |
316 |
338 |
356 |
50 |
8 |
50 |
45 |
95 |
14 |
6 |
2.0 |
600 |
345 |
367 |
356 |
40 |
8 |
50 |
41 |
95 |
14 |
1.5 |
2.0 |
750 |
316 |
338 |
360 |
70 |
8 |
68 |
70 |
135 |
20 |
6 |
2.0 |
1000 |
300 |
325 |
360 |
70 |
8.5 |
68 |
70 |
135 |
20 |
6 |
2.0 |
1200 |
415 |
440 |
475 |
70 |
8.5 |
68 |
70 |
135 |
20 |
6 |
2.0 |
1500 |
415 |
440 |
475 |
70 |
8.5 |
68 |
70 |
135 |
20 |
6 |
2.0 |
2000 |
510 |
535 |
570 |
70 |
8.5 |
68 |
70 |
135 |
20 |
6 |
2.0 |
2500 |
600 |
625 |
660 |
70 |
8.5 |
68 |
70 |
135 |
20 |
6 |
2.0 |
3000 |
600 |
625 |
660 |
70 |
8.5 |
68 |
70 |
135 |
20 |
6 |
2.0 |
